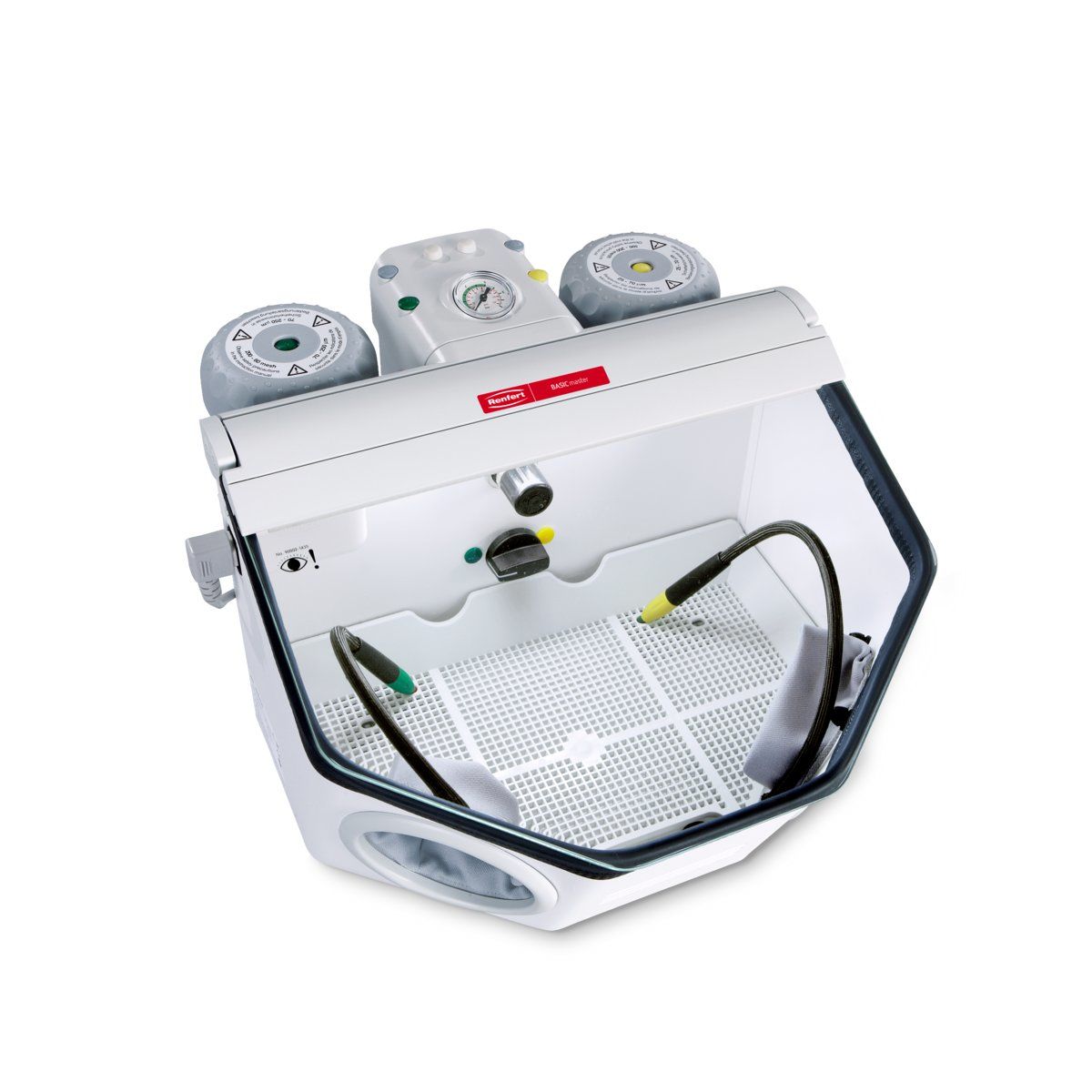

Sandblaster Basic Master 25 - 70 / 70 - 250 µm
Twin tank version

Compact blasting unit for all standard blasting purposes required within jewellery technology.
Powder-coated metal housing and large viewing pane
Tank selector switch situated within the blasting chamber
Individual blast pressure setting and pressure indicated via manometer.

Two types of blasting nozzles ensure the use of 25 - 70 µm and 70 - 250 µm abrasives.

Working pressure 1 - 6 bar
Connecting pressure max. 6 - 8 bar
Air consumption (depending on nozzle) max. 98 l/min
Highly resistant metal blasting nozzles
Effective lighting provided by 11 W fluorescent tubes
Removable base grate
Integrated water separator to remove residual dampness in compressed air

Voltage: 230 V
Frequency: 50/60 Hz
Lighting: 16 W
Blasting tank volume: 20 litres
Size (LxWxH): 395 x 285 x 460 mm
Weight: 8,1 kg

Features:
1 abrasive tank and nozzle for 25 - 70 µm
1 abrasive tank and nozzle for 70 - 250 µm
incl. 2 nozzles 0,8 mm / 1,2 mm
Colour coded blast handgrips and abrasive tanks
Foot switch can be activated from any position (360°)
Pipe connector for external extraction unit
interior Ø 35mm and exterior Ø 40 mm

On the backside standardized connection for extraction. There it is possible to connect and use almost any customery extractor.
