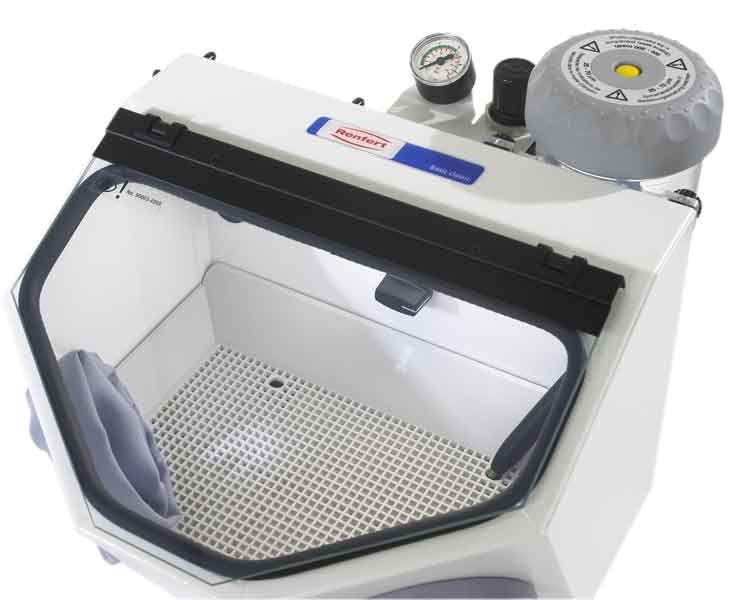

Sandblaster Basic Classic 25-70 µm
Single tank version

Compact blasting unit for all standard blasting purposes
required within jewellery technology.
Powder-coated metal housing and large viewing pane
Tank selector switch situated within the blasting chamber
Individual blast pressure setting and pressure indicated
via manometer.

Working pressure 1 - 6 bar
Connecting pressure max. 10 bar
Air consumption (depending on nozzle) max. 120 l/min
Highly resistant metal blasting nozzles
Effective lighting provided by 11 W fluorescent tubes
Removable base grate
Integrated water separator to remove residual dampness
in compressed air

Voltage: 230 V
Frequency: 50/60 Hz
Lighting: 11 W
Blasting tank volume: 14 litres
Size (LxWxH): 340 x 400 x 250 mm
Weight: 11.5 kg

Features:
1 abrasive tank and nozzle for 25 - 70 µm
Colour coded blast handgrips and abrasive tanks
Foot switch can be activated from any position (360°)
Pipe connector for external extraction unit, interior Ø 35mm
and exterior Ø 40 mm

On the backside standardized connection for extraction
There it is possible to connect and use almost any
customery extractor
